XUP - France Etuves

Use our XUP "Professional" universal ovens in all application domains:

Electronics, metallurgy, mechanics:

Heat treatment
Burning, aging
Heat resistance tests

Ovens for many processes.

Temperature : max.

300°C

The FRANCE ETUVES XUP "Professional" universal ovens are suitable for all applications for drying, heating, heat preservation, sterilization, component aging, curing or any other thermal test in laboratories and in all sectors of industry. The XUP ovens are equipped with the new FRANCE ETUVES C6000 temperature controller which allows you to prepare up to 100 programs, each with up to 32 segments (16 programmable temperature ramps (°C/min) and 16 heating timer (max 99h59min).

8 standard volumes available : 32, 58, 112, 225, 343, 490, 686 et 980 liters.

A robust manufacturing that meets quality requirements.

The outer plates of the oven are made of electro galvanized steel coated with white and blue paints. The inner casing is made of bright polished stainless steel. Stainless steel is particularly corrosion resistant, allowing you to process higher water content products. The control panel is located on the top part of the oven for smallest space requirements. ENTRY PORT 20 mm An entry port is centered on the left side for passing cables or probes. A silicone cork allows you to block the entry port in case of non-use or to make airtight after passing cables. INTERNAL LIGHTING The oven has an interior light point that automatically turns on when the door is opened. EASY CLEANING The rounded corners of the inner casing make easier cleaning operations.

An exceptionally effective oven.

EXCELLENT INSULATION The thermal insulation by asbestos-free glass wool is optimized. The outer casing is separated from the inner casing. There is no thermal bridge in order to ensure : low surface temperatures, low power consumption, rapid heating up. SEAL DOOR Air tightness of the door is ensured by a long-lasting stabilized silicone seal. It is easily removable for an easy and quick cleaning. AN EFFICIENT HEATING Heating is ensured by sheathed stainless steel heating elements, ideally positioned in the air flow, allowing homogeneous heating up.

A forced convection for an amazing temperature homogeneity !

Ventilation is provided by one or two fan(s) motor. It speeds up the drying process and homogenizes heating in the working volume. Inside the oven, air is sucked by the fan (1). It is heated by the heating elements (2), then is blown into the working volume (3). The hot air goes out through at the back of the oven (4). Fresh air enters the volume near the fan (5). Adjustable air change It is possible to create an air change inside the working volume. Thanks to an adjustment with c6000, open more or less the flap of the air outlet located at the backside of the oven. Hot air escapes from the air outlet and is replaced by ambient air.

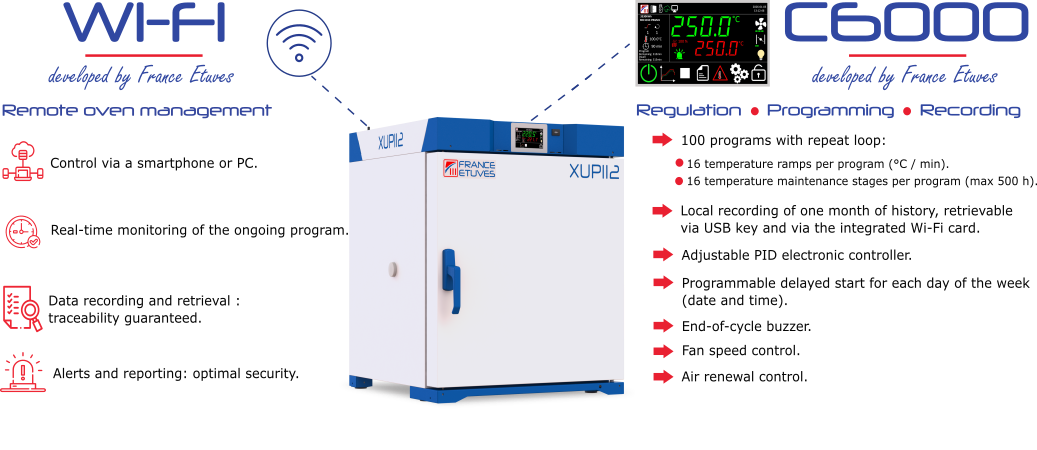

The C6000 temperature profiler

The FRANCE-ETUVES C6000 temperature controller is very accurate and particularly reliable. Measurement by PT100 or TCJ probe. Electronic PID temperature controller. Accuracy: 0.1°C. Color display, excellent visibility of temperatures. Functions : display of setpoint and measured temperature display (in percentage) of the heating power used date and time display possibility to prepare up to 100 programs with 32 steps: 16 programmable temperature ramps (°C/min) and 16 heating timer (max 99h59min) delayed or scheduled start repeat loop monitoring of your current program (step and remaining time) pause or stop the program in progress end of cycle buzzer fan speed control air renewal control several settings of the protection thermostat (TWW or TWB modes) PID adjustment possibility of adding a temperature correction at 2 distinct temperatures (offsets) automatic fault diagnosis. Display of faults RS485 modbus multipoint communication: allows to control several ovens on the same network recorder keeping in local memory of one month of historical data which can be dowloaded to an USB key

Protections for your oven and your products.

Automatic heating and ventilation turn off when the door is opened . This function can be deactivated in the parameters of the C6000. The ovens are equipped with an electronic thermostat with 2 modes (TWW or TWB) according to DIN 12 880. In TWW mode, the overheating protection thermostat behaves like an electronic thermostat with automatic reset (protection class 3.1). It measures the temperature in the volume, and control the temperature in the event of failure of the temperature controller. It stops heating until the temperature has dropped below the value of its setting. In TWB mode, the overheating protection thermostat behaves like an electronic thermostat with manual reset (protection class 2.0). When the measured temperature exceeds the set value, the heating is switched off. It is only available again if the thermostat is manually reset. Setpoint Deviation Temperature (SDT) The SDT system is a mechanism for monitoring the set temperature within a set tolerance zone. This is a temperature tracking alarm. With visual and audible alarm. Note : It's possible to control the oven with a computer through a RS485 cable.

Loading shelves

Ovens are delivered with 2 shelves (metal grills). Many positions are available for convenient loading/unloading. Each shelf can withstand up to 30 kg. Supports of shelves have an anti-tilting system. The spacing between the levels is 55mm. Additional shelves that can withstand up to 60 kg are available as accessories.

Fan circulated universal oven model Professional XUP032

Model	XUP032
Chamber volume:	32 litres

Performances :
Standard maximum temperature :	300 °C
Optional maximum temperature :	0 °C

Dimensions :
Chamber volume:	32 litres
Interior Dimensions (L x P x H) :	300 x 270 x 400 mm
Exterior Dimensions (L x P x H) :	464 x 566 x 712 mm

Partials product models shleves
Shelves quantity :	2 delivered / 6 maximum
Shelves dimensions :	270 x 240 mm
Max Load per Shelf / Total :	30 / 60 kg

Power & Divers :
Electrical Supply :	230V ~1P 50/60Hz 10A
Standard power 300 °C :	1000 Watts
Number of door(s) :	1
Ventilation flow rate :	200 m3/hour
Weight :	39 kg

Fan circulated universal oven model Professional XUP058

Model	XUP058
Chamber volume:	58 litres

Performances :
Standard maximum temperature :	300 °C
Optional maximum temperature :	0 °C

Dimensions :
Chamber volume:	58 litres
Interior Dimensions (L x P x H) :	400 x 360 x 400 mm
Exterior Dimensions (L x P x H) :	564 x 656 x 712 mm

Partials product models shleves
Shelves quantity :	2 delivered / 6 maximum
Shelves dimensions :	370 x 330 mm
Max Load per Shelf / Total :	30 / 60 kg

Power & Divers :
Electrical Supply :	230V ~1P 50/60Hz 10A
Standard power 300 °C :	1500 Watts
Number of door(s) :	1
Ventilation flow rate :	200 m3/hour
Weight :	50 kg

Fan circulated universal oven model Professional XUP112

Model	XUP112
Chamber volume:	112 litres

Performances :
Standard maximum temperature :	300 °C
Optional maximum temperature :	0 °C

Dimensions :
Chamber volume:	112 litres
Interior Dimensions (L x P x H) :	500 x 450 x 500 mm
Exterior Dimensions (L x P x H) :	664 x 746 x 812 mm

Partials product models shleves
Shelves quantity :	2 delivered / 8 maximum
Shelves dimensions :	470 x 420 mm
Max Load per Shelf / Total :	30 / 60 kg

Power & Divers :
Electrical Supply :	230V ~1P 50/60Hz 10A
Standard power 300 °C :	1500 Watts
Number of door(s) :	1
Ventilation flow rate :	200 m3/hour
Weight :	65 kg

Fan circulated universal oven model Professional XUP225

Model	XUP225
Chamber volume:	225 litres

Performances :
Standard maximum temperature :	300 °C
Optional maximum temperature :	0 °C

Dimensions :
Chamber volume:	225 litres
Interior Dimensions (L x P x H) :	500 x 450 x 1000 mm
Exterior Dimensions (L x P x H) :	664 x 746 x 1312 mm

Partials product models shleves
Shelves quantity :	2 delivered / 17 maximum
Shelves dimensions :	470 x 420 mm
Max Load per Shelf / Total :	30 / 120 kg

Power & Divers :
Electrical Supply :	230V ~1P 50/60Hz 10A
Standard power 300 °C :	2000 Watts
Number of door(s) :	1
Ventilation flow rate :	400 m3/hour
Weight :	84 kg

Fan circulated universal oven model Professional XUP343

Model	XUP343
Chamber volume:	343 litres

Performances :
Standard maximum temperature :	300 °C
Optional maximum temperature :	0 °C

Dimensions :
Chamber volume:	343 litres
Interior Dimensions (L x P x H) :	700 x 700 x 700 mm
Exterior Dimensions (L x P x H) :	864 x 1092 x 1012 mm

Partials product models shleves
Shelves quantity :	2 delivered / 11 maximum
Shelves dimensions :	670 x 670 mm
Max Load per Shelf / Total :	30 / 100 kg

Power & Divers :
Electrical Supply :	230V ~1P 50Hz 16A
Standard power 300 °C :	3000 Watts
Number of door(s) :	1
Ventilation flow rate :	500 m3/hour
Weight :	123 kg

Fan circulated universal oven model Professional XUP490

Model	XUP490
Chamber volume:	490 litres

Performances :
Standard maximum temperature :	300 °C
Optional maximum temperature :	0 °C

Dimensions :
Chamber volume:	490 litres
Interior Dimensions (L x P x H) :	700 x 700 x 1000 mm
Exterior Dimensions (L x P x H) :	864 x 1092 x 1312 mm

Partials product models shleves
Shelves quantity :	2 delivered / 17 maximum
Shelves dimensions :	670 x 670 mm
Max Load per Shelf / Total :	30 / 160 kg

Power & Divers :
Electrical Supply :	230V ~1P 50Hz 16A
Standard power 300 °C :	3000 Watts
Number of door(s) :	1
Ventilation flow rate :	500 m3/hour
Weight :	148 kg

Fan circulated universal oven model Professional XUP686

Model	XUP686
Chamber volume:	686 litres

Performances :
Standard maximum temperature :	300 °C
Optional maximum temperature :	0 °C

Dimensions :
Chamber volume:	686 litres
Interior Dimensions (L x P x H) :	700 x 700 x 1400 mm
Exterior Dimensions (L x P x H) :	864 x 1092 x 1712 mm

Partials product models shleves
Shelves quantity :	2 delivered / 25 maximum
Shelves dimensions :	670 x 670 mm
Max Load per Shelf / Total :	30 / 160 kg

Power & Divers :
Electrical Supply :	230V ~1P 50Hz 20A
Standard power 300 °C :	4000 Watts
Number of door(s) :	1
Ventilation flow rate :	1000 m3/hour
Weight :	178 kg

Fan circulated universal oven model Professional XUP980

Model	XUP980
Chamber volume:	980 litres

Performances :
Standard maximum temperature :	300 °C
Optional maximum temperature :	0 °C

Dimensions :
Chamber volume:	980 litres
Interior Dimensions (L x P x H) :	1000 x 700 x 1400 mm
Exterior Dimensions (L x P x H) :	1164 x 1092 x 1717 mm

Partials product models shleves
Shelves quantity :	2 delivered / 25 maximum
Shelves dimensions :	970 x 670 mm
Max Load per Shelf / Total :	30 / 180 kg

Power & Divers :
Electrical Supply :	400V ~3P + N 50Hz 10A
Standard power 300 °C :	6000 Watts
Number of door(s) :	2
Ventilation flow rate :	1000 m3/hour
Weight :	258 kg

Range XUP		XUP032	XUP058	XUP112	XUP225	XUP343	XUP490	XUP686	XUP980

Performances
Temperature range :	Ambient temperature + 10 °C à 300 °C
Standard maximum temperature :	300 °C
Homogeneity at 105 °C :	± °C	< 1.2	< 1.2	< 1.2	< 1.5	< 1.2	< 1.2	< 1.2	< 1.2

Chamber dimensions
Chamber volume:	dm3	32	58	112	225	343	490	686	980
Width :	mm	300	400	500	500	700	700	700	1000
Depth :	mm	270	360	450	450	700	700	700	700
Height :	mm	400	400	500	1000	700	1000	1400	1400

Exterior Dimensions
Exterior Chamber Volume :	m3	0.19	0.26	0.4	0.65	0.95	1.24	1.62	2.18
Width :	mm	464	564	664	664	864	864	864	1164
Depth :	mm	566	656	746	746	1092	1092	1092	1092
Height :	mm	712	712	812	1312	1012	1312	1712	1717

Shelves:
Delivered / Maximum :		2 / 6	2 / 6	2 / 8	2 / 17	2 / 11	2 / 17	2 / 25	2 / 25
Dimensions L / P :	mm	270 x 240	370 x 330	470 x 420	470 x 420	670 x 670	670 x 670	670 x 670	970 x 670
Maximum weight / Total :	kg	30 / 60	30 / 60	30 / 60	30 / 120	30 / 100	30 / 160	30 / 160	30 / 180

Other informations
Number of door(s) :		1	1	1	1	1	1	1	2
Window L / l (option)	mm	130x200	200x200	180x350	350x350	350x550	350x550	350x550	180x350 (x2)
Weight :	kg	39	50	65	84	123	148	178	258

Electrical data
Standard power 300 °C :	Watts	1000	1500	1500	2000	3000	3000	4000	6000
Electrical Supply :	volts	230V ~1P 50/60Hz 10A	230V ~1P 50/60Hz 10A	230V ~1P 50/60Hz 10A	230V ~1P 50/60Hz 10A	230V ~1P 50Hz 16A	230V ~1P 50Hz 16A	230V ~1P 50Hz 20A	400V ~3P + N 50Hz 10A

Nous nous réservons le droit d'apporter toute modification technique sans préavis.

All the options of the range XUP

Reference	Image	Description
OG9006		Door with viewing window You will be able to see and control inside the oven. The surface temperature around the window and the power consumption will be higher. The temperature uniformity will be affected.
OG9030		Factory calibration certificate 1 point 1 temperature Measurement in the center of the working chamber at 105°C, 150°C or 200°C (according to FD X 15-140).
OG9031		Homogeneity control 1 temperature (105,150 or 200°C) Measurement at 9 or 15 points in the working chamber at 105°C, 150°C or 200°C (according to FD X 15-140).
OG9034		Air cooling extractor Enables cooling the temperature in the working volume at the end of the cycle.
OG9045		Air outlet extractor Evacuates the exhaust air into a duct system.
OG9047		Access port diameter 60 mm Centered on the left side. Allows the passage of cables or sensors.
OG9058		Key lock door
OG9073		Ethernet RJ45 communication module Interface connected to the oven controller(C3030, C6000 or C6060). The user can control the controller with a web application included in the interface. It can also send data to a cloud.
OG9074		Tower 3 lights and buzzer Green: Cycle in progress Yellow: Cycle finished Red: Alarm Buzzer: Alarm / Cycle finished

All the accessories for the range XUP

Reference	Image	Description
AG9001		Shelf with guide bars Made of chromed steel. Max distributed loading of 30 kg. With 2 anti-tilting guide bars.
AG9002		Reinforced shelf 60 kg with guide bars Made of chromed steel. Max distributed loading of 60 kg. With 2 anti-tilting guide bars.
AG9003		Recovery tray Made of stainless steel. Easy to clean. Their height of 20 mm collects liquids or other substances during your process.
AG9004		Stacking kit Only for XU032 to XU112. To stack 2 ovens same size.
AG9005		Subframe with feet Elevates the oven for a more comfortable loading. Adjustable feet in height.
AG9006		Subframe with castors Elevates the oven for a more comfortable loading. 4 castors, two with brakes.
AG9013		Data logger with 2 channels (software included) Saves the temperatures measured by 2 mobile sensors. Record temperatures measured by 2 mobile sensors. Box with magnetic fixing<br> Dimensions : 93.2 x 65.2 x 30.5 mm Weight: 115 g<br> Display : LCD screen 2 lines \| ABS IP54<br> Communication PC : 1 micro-USB Power supply by battery AA lithium 3.6V<br> Tc entries : female connector micro-USB, thermocouples (K, J, T, N, S)<br> Recording from every 1s to 24h Autonomy: 4 years (for 1 measure every 15 monutes) Software and cable included
AG9014		Portable paperless recorder with graphical screen 4 channels Color graphical display for real monitoring of temperature changes. With USB and RJ45 plugs, and 4 connectors for mobile sensors.
AG9015		Portable paperless graphic recorder with 6 channels Full color screen display. Real monitoring of temperature changes. With USB and RJ45 plugs, and 6 connectors for mobile sensors.
AG9016		Thermocouple probe Length 3 m, with plug
AG9041		Whel frame mount
