Range XUEHT

Range XUEHT

Download the documentation

XUEHT High temperature ovens are suitable for a large number of applications: burning, degassing, pre-heating, hardening, sterilization at high temperature, tests ... Maximum temperature :

450°C

2 volumes: 112 and 343 liters.

XUEHT XUEHT112

XUEHT XUEHT112-6

XUEHT XUEHT343

A robust construction with great performances.

The inner casing is made of stainless steel, resistant to corrosion. The outer casing is made of electro-galvanized sheet coated with white and blue epoxy paint. THICK INSULATION The internal box is separated from the external box by an optimal insulation which reduces heat losses and allows a better quality of heating. The walls and the door are insulated with 150 mm asbestos free. You are guaranteed to have: optimal functioning, low surface temperatures, excellent thermal stability. The insulation is improved by the installation of a special seal allowing the seal between the door and the body of the oven. EASY CLEANING ! The corners of the inner casing are rounded, making it easier to clean the tank. ENTRY PORT Ø 40 mm A entry port centered on the left wall allows the passage of cables or probes. A high-temperature plug makes it possible to close the passage in the event of non-use or to seal the passage after passing the cables through it. PERFORMING HEATING Heating is provided by armored stainless steel resistors, ideally positioned in the air flow, allowing a rapid and uniform rise in temperature.

Forced ventilation for perfect temperature uniformity !

Ventilation is provided by a motor fan. It accelerates the drying process and homogenizes the heat in the useful volume. Inside the oven, the air is drawn in by the fan. It is heated by the heating elements and then blown into the useful volume. The hot air is evacuated by an outlet chimney with adjustable shutter at the rear of the oven. Fresh air also enters the volume from the rear. ADJUSTABLE AIR RENEWAL The air outlet is equipped with an adjustable flap. An air renewal adjustment button opens or closes this shutter. When the latter is closed, the air circulation takes place in a closed circuit in the oven: it is the best method to quickly preheat the oven before introducing objects into it. When the shutter is opened, fresh air is created.

XUEHT Xueht112-clapets
XUEHT C3030-200

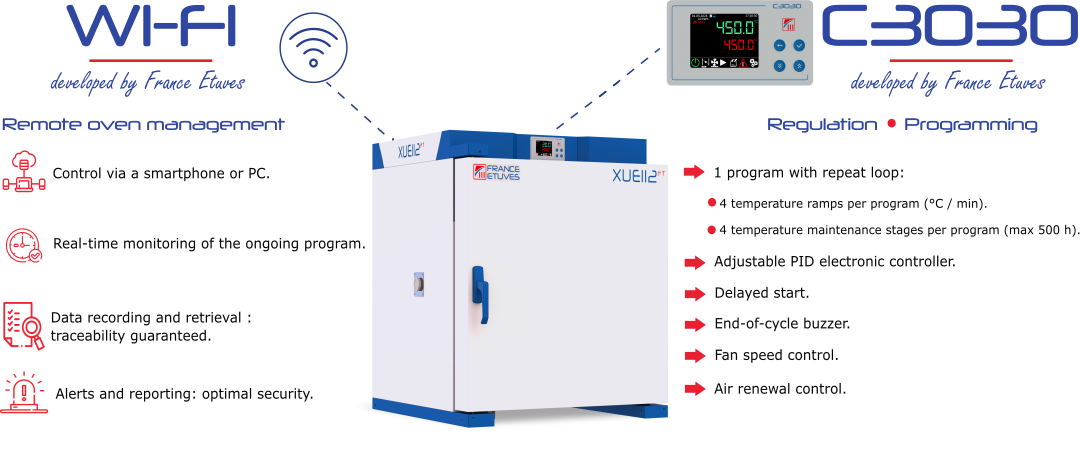

The C3030 temperature profiler

The FRANCE-ETUVES C3030 temperature controller is very accurate and particularly reliable. Measurement by PT100 or TCJ probe. Electronic PID temperature controller. Accuracy: 0.1°C. Color display, excellent visibility of temperatures. Functions : display of setpoint and measured temperature display (in percentage) of the heating power used date and time display Possibility of making 1 program with 8 steps: 4 programmable temperature ramps (°C/min) and 4 heating timer (max 99h59min) delayed start repeat loop monitoring of your current program (step and remaining time) pause or stop the program end of cycle buzzer fan speed control several settings of the protection thermostat (TWW or TWB modes) PID adjustment possibility of adding a temperature correction at 2 distinct temperatures (offsets) automatic fault diagnosis. Display of faults RS485 modbus multipoint communication: allows to control several ovens on the same network

Protections for your oven and your products.

Automatic heating and ventilation turn off when the door is opened . This function can be deactivated in the parameters of the C3030. The ovens are equipped with an electronic thermostat with 2 modes (TWW or TWB) according to DIN 12 880. In TWW mode, the overheating protection thermostat behaves like an electronic thermostat with automatic reset (protection class 3.1). It measures the temperature in the volume, and control the temperature in the event of failure of the temperature controller. It stops heating until the temperature has dropped below the value of its setting. In TWB mode, the overheating protection thermostat behaves like an electronic thermostat with manual reset (protection class 2.0). When the measured temperature exceeds the set value, the heating is switched off. It is only available again if the thermostat is manually reset. Setpoint Deviation Temperature (SDT) The SDT system is a mechanism for monitoring the set temperature within a set tolerance zone. This is a temperature tracking alarm. With visual and audible alarm. Note : It's possible to control the oven with a computer through a RS232 cable.

Loading shelves

XUEHT112 and XUEHT343 are supplied with 2 shelves (grids). Multiple hooking levels are available for easy loading and unloading. The spacing between the levels is 55 mm. Each shelf can support up to 30 kg distributed. The shelf supports are supplied with an anti-tip system. Shelves supporting a distributed weight of 60 kg are available as accessories.

XUEHT XUEHT112-clayette
Image XUEHT112
Universal oven high temperature 112 liters XUEHT112
Model XUEHT112
Chamber volume: 112 litres
Performances :
Standard maximum temperature : 450 °C
Optional maximum temperature : 0 °C
Dimensions :
Chamber volume: 112 litres
Interior Dimensions (L x P x H) : 500 x 450 x 500 mm
Exterior Dimensions (L x P x H) : 812 x 920 x 948 mm
Partials product models shleves
Shelves quantity : 2 delivered / 8 maximum
Shelves dimensions : 470 x 420 mm
Max Load per Shelf / Total : 30 / 60 kg
Power & Divers :
Electrical Supply : 230V ~1P 50Hz 25A
Standard power 450 °C : 5000 Watts
Number of door(s) : 1
Ventilation flow rate : 200 m3/hour
Weight : 195 kg
Image XUEHT343
Universal oven high temperature 343 liters XUEHT343
Model XUEHT343
Chamber volume: 343 litres
Performances :
Standard maximum temperature : 450 °C
Optional maximum temperature : 0 °C
Dimensions :
Chamber volume: 343 litres
Interior Dimensions (L x P x H) : 700 x 700 x 700 mm
Exterior Dimensions (L x P x H) : 1250 x 1215 x 1510 mm
Partials product models shleves
Shelves quantity : 2 delivered / 12 maximum
Shelves dimensions : 670 x 670 mm
Max Load per Shelf / Total : 30 / 180 kg
Power & Divers :
Electrical Supply : 400V ~3P + N 50Hz 20A
Standard power 450 °C : 12000 Watts
Number of door(s) : 1
Ventilation flow rate : 1400 m3/hour
Weight : 285 kg
Range XUEHT XUEHT112 XUEHT343
XUEHT112 XUEHT343
Performances
Temperature range : Ambient temperature + 10 °C à 450 °C
Standard maximum temperature : 450 °C
Chamber dimensions
Chamber volume: dm3 112 343
Width : mm 500 700
Depth : mm 450 700
Height : mm 500 700
Exterior Dimensions
Exterior Chamber Volume : m3 0.71 2.29
Width : mm 812 1250
Depth : mm 920 1215
Height : mm 948 1510
Shelves:
Delivered / Maximum : 2 / 8 2 / 12
Dimensions L / P : mm 470 x 420 670 x 670
Maximum weight / Total : kg 30 / 60 30 / 180
Other informations
Number of door(s) : 1 1
Window L / l (option) mm - -
Weight : kg 195 285
Electrical data
Standard power 450 °C : Watts 5000 12000
Electrical Supply : volts 230V ~1P 50Hz 25A 400V ~3P + N 50Hz 20A
Nous nous réservons le droit d'apporter toute modification technique sans préavis.
All the options of the range XUEHT
Reference Image Description
OG9008 Image Option OG9008 Digital weekly program timer
Set times of operation of the oven for each day of the week. Ventilation is stopped only when the oven temperature has fallen to 80°C to prevent damage to the fans.
OG9030 Image Option OG9030 Factory calibration certificate 1 point 1 temperature
Measurement in the center of the working chamber at 105°C, 150°C or 200°C (according to FD X 15-140).
OG9031 Image Option OG9031 Homogeneity control 1 temperature (105,150 or 200°C)
Measurement at 9 or 15 points in the working chamber at 105°C, 150°C or 200°C (according to FD X 15-140).
OG9049 Image Option OG9049 Temperature profiler and recorder
Creates up to 100 programs with 25 steps each. Recording of measured temperatures. Large graphical display. Real-time monitoring of temperatures. 3 extra channels. With USB and RJ45 plugs.
OG9073 Image Option OG9073 Ethernet RJ45 communication module
Interface connected to the oven controller(C3030, C6000 or C6060). The user can control the controller with a web application included in the interface. It can also send data to a cloud.
OG9074 Image Option OG9074 Tower 3 lights and buzzer
Green: Cycle in progress Yellow: Cycle finished Red: Alarm Buzzer: Alarm / Cycle finished
All the accessories for the range XUEHT
Reference Image Description
AG9001 Image Accessoire AG9001 Shelf with guide bars
Made of chromed steel. Max distributed loading of 30 kg. With 2 anti-tilting guide bars.
AG9002 Image Accessoire AG9002 Reinforced shelf 60 kg with guide bars
Made of chromed steel. Max distributed loading of 60 kg. With 2 anti-tilting guide bars.
AG9003 Image Accessoire AG9003 Recovery tray
Made of stainless steel. Easy to clean. Their height of 20 mm collects liquids or other substances during your process.
AG9005 Image Accessoire AG9005 Subframe with feet
Elevates the oven for a more comfortable loading. Adjustable feet in height.
AG9006 Image Accessoire AG9006 Subframe with castors
Elevates the oven for a more comfortable loading. 4 castors, two with brakes.
AG9013 Image Accessoire AG9013 Data logger with 2 channels (software included)
Saves the temperatures measured by 2 mobile sensors. Record temperatures measured by 2 mobile sensors. Box with magnetic fixing<br> Dimensions : 93.2 x 65.2 x 30.5 mm Weight: 115 g<br> Display : LCD screen 2 lines | ABS IP54<br> Communication PC : 1 micro-USB Power supply by battery AA lithium 3.6V<br> Tc entries : female connector micro-USB, thermocouples (K, J, T, N, S)<br> Recording from every 1s to 24h Autonomy: 4 years (for 1 measure every 15 monutes) Software and cable included
AG9014 Image Accessoire AG9014 Portable paperless recorder with graphical screen 4 channels
Color graphical display for real monitoring of temperature changes. With USB and RJ45 plugs, and 4 connectors for mobile sensors.
AG9015 Image Accessoire AG9015 Portable paperless graphic recorder with 6 channels
Full color screen display. Real monitoring of temperature changes. With USB and RJ45 plugs, and 6 connectors for mobile sensors.
AG9016 Image Accessoire AG9016 Thermocouple probe
Length 3 m, with plug
