Range XUE

Range XUE

Download the documentation

Use our XU universal ovens in all application domains:


Applications App_water
Applications App_electronic

Electronics, metallurgy, mechanics:

  • Heat treatment
  • Burning, aging
  • Heat resistance tests




Ovens for many processes.



Maximum temperature: 300°C

The FRANCE ETUVES XUE universal ovens are suitable for all applications for drying, heating, heat preservation, sterilization, component aging, curing or any other thermal test in laboratories and in all sectors of industry. The XUE ovens have the FRANCE ETUVES C3030 temperature controller which will allow you to make a temperature program up to 8 segments (4 programmable temperature ramps (°C/min) and 4 heating timer (max 99h59min). There are 8 standard volumes : 32, 58, 112, 225, 343, 490, 686 and 980 liters.

XUE XUE112-2

XUE XUE490-5

A robust manufacturing that meets quality requirements.

The outer plates of the oven are made of electro galvanized steel coated with white and blue paints. The inner casing is made of bright polished stainless steel. Stainless steel is particularly corrosion resistant, allowing you to process higher water content products. The control panel is located on the top part of the oven for smallest space requirements. ENTRY PORT 20 mm An entry port is centered on the left side for passing cables or probes. A silicone cork allows you to block the entry port in case of non-use or to make airtight after passing cables. INTERNAL LIGHTING The oven has an interior light point that automatically turns on when the door is opened. EASY CLEANING The rounded corners of the inner casing make easier cleaning operations.

XUE XUE980-4

An exceptionally effective oven.

EXCELLENT INSULATION The thermal insulation by asbestos-free glass wool is optimized. The outer casing is separated from the inner casing. There is no thermal bridge in order to ensure : low surface temperatures, low power consumption, rapid heating up. SEAL DOOR Air tightness of the door is ensured by a long-lasting stabilized silicone seal. It is easily removable for an easy and quick cleaning. AN EFFICIENT HEATING Heating is ensured by sheathed stainless steel heating elements, ideally positioned in the air flow, allowing homogeneous heating up.

A forced convection for an amazing temperature homogeneity !

Ventilation is provided by one or two fan(s) motor. It speeds up the drying process and homogenizes heating in the working volume. Inside the oven, air is sucked by the fan (1). It is heated by the heating elements (2), then is blown into the working volume (3). The hot air goes out through at the back of the oven (4). Fresh air enters the volume near the fan (5). Adjustable air change It is possible to create an air change inside the working volume. Thanks to an adjustment button, open more or less the flap of the air outlet located at the backside of the oven. Hot air escapes from the air outlet and is replaced by ambient air.

XUE Principe-de-fonctionnement-xu
XUE C3030-200

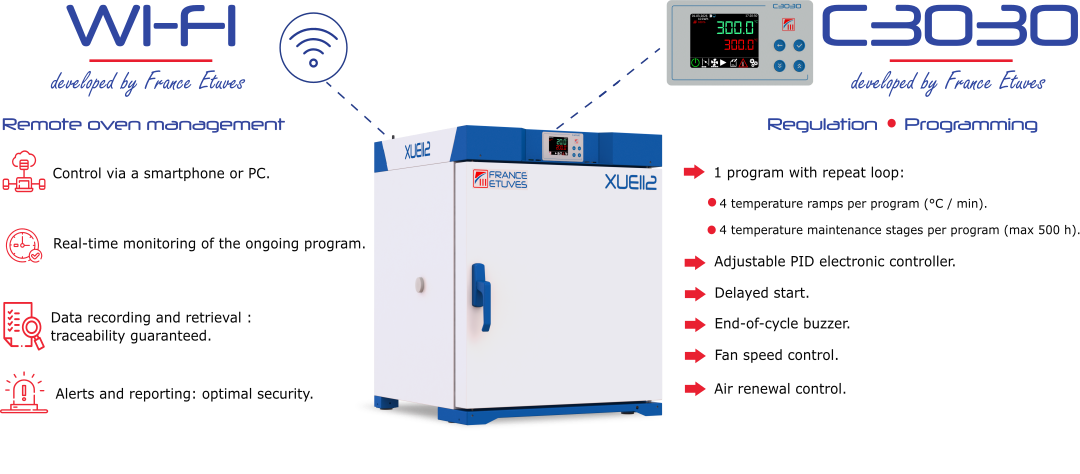

The C3030 temperature profiler

The FRANCE-ETUVES C3030 temperature controller is very accurate and particularly reliable. Measurement by PT100 or TCJ probe. Electronic PID temperature controller. Accuracy: 0.1°C. Color display, excellent visibility of temperatures. Functions : display of setpoint and measured temperature display (in percentage) of the heating power used date and time display Possibility of making 1 program with 8 steps: 4 programmable temperature ramps (°C/min) and 4 heating timer (max 99h59min) delayed start repeat loop monitoring of your current program (step and remaining time) pause or stop the program end of cycle buzzer fan speed control several settings of the protection thermostat (TWW or TWB modes) PID adjustment possibility of adding a temperature correction at 2 distinct temperatures (offsets) automatic fault diagnosis. Display of faults RS485 modbus multipoint communication: allows to control several ovens on the same network

Protections for your oven and your products.

Automatic heating and ventilation turn off when the door is opened . This function can be deactivated in the parameters of the C3030. The ovens are equipped with an electronic thermostat with 2 modes (TWW or TWB) according to DIN 12 880. In TWW mode, the overheating protection thermostat behaves like an electronic thermostat with automatic reset (protection class 3.1). It measures the temperature in the volume, and control the temperature in the event of failure of the temperature controller. It stops heating until the temperature has dropped below the value of its setting. In TWB mode, the overheating protection thermostat behaves like an electronic thermostat with manual reset (protection class 2.0). When the measured temperature exceeds the set value, the heating is switched off. It is only available again if the thermostat is manually reset. Setpoint Deviation Temperature (SDT) The SDT system is a mechanism for monitoring the set temperature within a set tolerance zone. This is a temperature tracking alarm. With visual and audible alarm. Note : It's possible to control the oven with a computer through a RS232 cable.

Loading shelves

Ovens are delivered with 2 shelves (metal grills). Many positions are available for convenient loading/unloading. Each shelf can withstand up to 30 kg. Supports of shelves have an anti-tilting system. The spacing between the levels is 55mm. Additional shelves that can withstand up to 60 kg are available as accessories.

XUE Clayette-etuve
Image XUE032
Fan circulated universal oven 32 liters XUE032
Model XUE032
Chamber volume: 32 litres
Performances :
Standard maximum temperature : 300 °C
Optional maximum temperature : 0 °C
Dimensions :
Chamber volume: 32 litres
Interior Dimensions (L x P x H) : 300 x 270 x 400 mm
Exterior Dimensions (L x P x H) : 464 x 495 x 712 mm
Partials product models shleves
Shelves quantity : 2 delivered / 6 maximum
Shelves dimensions : 270 x 240 mm
Max Load per Shelf / Total : 30 / 60 kg
Power & Divers :
Electrical Supply : 230V ~1P 50/60Hz 10A
Standard power 300 °C : 1000 Watts
Number of door(s) : 1
Ventilation flow rate : 200 m3/hour
Weight : 39 kg
Image XUE058
Fan circulated universal oven 58 liters XUE058
Model XUE058
Chamber volume: 58 litres
Performances :
Standard maximum temperature : 300 °C
Optional maximum temperature : 0 °C
Dimensions :
Chamber volume: 58 litres
Interior Dimensions (L x P x H) : 400 x 360 x 400 mm
Exterior Dimensions (L x P x H) : 564 x 585 x 712 mm
Partials product models shleves
Shelves quantity : 2 delivered / 6 maximum
Shelves dimensions : 370 x 330 mm
Max Load per Shelf / Total : 30 / 60 kg
Power & Divers :
Electrical Supply : 230V ~1P 50/60Hz 10A
Standard power 300 °C : 1500 Watts
Number of door(s) : 1
Ventilation flow rate : 200 m3/hour
Weight : 50 kg
Image XUE112
Fan circulated universal oven 112 liters XUE112
Model XUE112
Chamber volume: 112 litres
Performances :
Standard maximum temperature : 300 °C
Optional maximum temperature : 0 °C
Dimensions :
Chamber volume: 112 litres
Interior Dimensions (L x P x H) : 500 x 450 x 500 mm
Exterior Dimensions (L x P x H) : 664 x 746 x 812 mm
Partials product models shleves
Shelves quantity : 2 delivered / 8 maximum
Shelves dimensions : 470 x 420 mm
Max Load per Shelf / Total : 30 / 60 kg
Power & Divers :
Electrical Supply : 230V ~1P 50/60Hz 10A
Standard power 300 °C : 1500 Watts
Number of door(s) : 1
Ventilation flow rate : 200 m3/hour
Weight : 65 kg
Image XUE225
Fan circulated universal oven 225 liters XUE225
Model XUE225
Chamber volume: 225 litres
Performances :
Standard maximum temperature : 300 °C
Optional maximum temperature : 0 °C
Dimensions :
Chamber volume: 225 litres
Interior Dimensions (L x P x H) : 500 x 450 x 1000 mm
Exterior Dimensions (L x P x H) : 664 x 746 x 1312 mm
Partials product models shleves
Shelves quantity : 2 delivered / 17 maximum
Shelves dimensions : 470 x 420 mm
Max Load per Shelf / Total : 30 / 120 kg
Power & Divers :
Electrical Supply : 230V ~1P 50/60Hz 10A
Standard power 300 °C : 2000 Watts
Number of door(s) : 1
Ventilation flow rate : 400 m3/hour
Weight : 84 kg
Image XUE343
Fan circulated universal oven 343 liters XUE343
Model XUE343
Chamber volume: 343 litres
Performances :
Standard maximum temperature : 300 °C
Optional maximum temperature : 0 °C
Dimensions :
Chamber volume: 343 litres
Interior Dimensions (L x P x H) : 700 x 700 x 700 mm
Exterior Dimensions (L x P x H) : 864 x 1092 x 1012 mm
Partials product models shleves
Shelves quantity : 2 delivered / 11 maximum
Shelves dimensions : 670 x 670 mm
Max Load per Shelf / Total : 30 / 100 kg
Power & Divers :
Electrical Supply : 230V ~1P 50Hz 16A
Standard power 300 °C : 3000 Watts
Number of door(s) : 1
Ventilation flow rate : 500 m3/hour
Weight : 123 kg
Image XUE490
Fan circulated universal oven 490 liters XUE490
Model XUE490
Chamber volume: 490 litres
Performances :
Standard maximum temperature : 300 °C
Optional maximum temperature : 0 °C
Dimensions :
Chamber volume: 490 litres
Interior Dimensions (L x P x H) : 700 x 700 x 1000 mm
Exterior Dimensions (L x P x H) : 864 x 1092 x 1312 mm
Partials product models shleves
Shelves quantity : 2 delivered / 17 maximum
Shelves dimensions : 670 x 670 mm
Max Load per Shelf / Total : 30 / 160 kg
Power & Divers :
Electrical Supply : 230V ~1P 50Hz 16A
Standard power 300 °C : 3000 Watts
Number of door(s) : 1
Ventilation flow rate : 500 m3/hour
Weight : 148 kg
Image XUE686
Fan circulated universal oven 686 liters XUE686
Model XUE686
Chamber volume: 686 litres
Performances :
Standard maximum temperature : 300 °C
Optional maximum temperature : 0 °C
Dimensions :
Chamber volume: 686 litres
Interior Dimensions (L x P x H) : 700 x 700 x 1400 mm
Exterior Dimensions (L x P x H) : 864 x 1092 x 1712 mm
Partials product models shleves
Shelves quantity : 2 delivered / 25 maximum
Shelves dimensions : 670 x 670 mm
Max Load per Shelf / Total : 30 / 160 kg
Power & Divers :
Electrical Supply : 230V ~1P 50Hz 20A
Standard power 300 °C : 4000 Watts
Number of door(s) : 1
Ventilation flow rate : 1000 m3/hour
Weight : 178 kg
Image XUE980
Fan circulated universal oven 980 liters XUE980
Model XUE980
Chamber volume: 980 litres
Performances :
Standard maximum temperature : 300 °C
Optional maximum temperature : 0 °C
Dimensions :
Chamber volume: 980 litres
Interior Dimensions (L x P x H) : 1000 x 700 x 1400 mm
Exterior Dimensions (L x P x H) : 1164 x 1092 x 1717 mm
Partials product models shleves
Shelves quantity : 2 delivered / 25 maximum
Shelves dimensions : 970 x 670 mm
Max Load per Shelf / Total : 30 / 180 kg
Power & Divers :
Electrical Supply : 400V ~3P + N 50Hz 10A
Standard power 300 °C : 6000 Watts
Number of door(s) : 2
Ventilation flow rate : 1000 m3/hour
Weight : 258 kg
Range XUE XUE032 XUE058 XUE112 XUE225 XUE343 XUE490 XUE686 XUE980
XUE032 XUE058 XUE112 XUE225 XUE343 XUE490 XUE686 XUE980
Performances
Temperature range : Ambient temperature + 10 °C à 300 °C
Standard maximum temperature : 300 °C
Homogeneity at 105 °C : ± °C < 1.2 < 1.2 < 1.2 < 1.5 < 1.2 < 1.2 < 1.2 < 1.2
Chamber dimensions
Chamber volume: dm3 32 58 112 225 343 490 686 980
Width : mm 300 400 500 500 700 700 700 1000
Depth : mm 270 360 450 450 700 700 700 700
Height : mm 400 400 500 1000 700 1000 1400 1400
Exterior Dimensions
Exterior Chamber Volume : m3 0.16 0.23 0.4 0.65 0.95 1.24 1.62 2.18
Width : mm 464 564 664 664 864 864 864 1164
Depth : mm 495 585 746 746 1092 1092 1092 1092
Height : mm 712 712 812 1312 1012 1312 1712 1717
Shelves:
Delivered / Maximum : 2 / 6 2 / 6 2 / 8 2 / 17 2 / 11 2 / 17 2 / 25 2 / 25
Dimensions L / P : mm 270 x 240 370 x 330 470 x 420 470 x 420 670 x 670 670 x 670 670 x 670 970 x 670
Maximum weight / Total : kg 30 / 60 30 / 60 30 / 60 30 / 120 30 / 100 30 / 160 30 / 160 30 / 180
Other informations
Number of door(s) : 1 1 1 1 1 1 1 2
Window L / l (option) mm 130 x 200 200 x 200 180 x 350 350 x 350 350x550 350x550 350x550 180x350 (x2)
Weight : kg 39 50 65 84 123 148 178 258
Electrical data
Standard power 300 °C : Watts 1000 1500 1500 2000 3000 3000 4000 6000
Electrical Supply : volts 230V ~1P 50/60Hz 10A 230V ~1P 50/60Hz 10A 230V ~1P 50/60Hz 10A 230V ~1P 50/60Hz 10A 230V ~1P 50Hz 16A 230V ~1P 50Hz 16A 230V ~1P 50Hz 20A 400V ~3P + N 50Hz 10A
Nous nous réservons le droit d'apporter toute modification technique sans préavis.
All the options of the range XUE
Reference Image Description
OG9006 Image Option OG9006 Door with viewing window
You will be able to see and control inside the oven. The surface temperature around the window and the power consumption will be higher. The temperature uniformity will be affected.
OG9008 Image Option OG9008 Digital weekly program timer
Set times of operation of the oven for each day of the week. Ventilation is stopped only when the oven temperature has fallen to 80°C to prevent damage to the fans.
OG9030 Image Option OG9030 Factory calibration certificate 1 point 1 temperature
Measurement in the center of the working chamber at 105°C, 150°C or 200°C (according to FD X 15-140).
OG9031 Image Option OG9031 Homogeneity control 1 temperature (105,150 or 200°C)
Measurement at 9 or 15 points in the working chamber at 105°C, 150°C or 200°C (according to FD X 15-140).
OG9034 Image Option OG9034 Air cooling extractor
Enables cooling the temperature in the working volume at the end of the cycle.
OG9045 Image Option OG9045 Air outlet extractor
Evacuates the exhaust air into a duct system.
OG9047 Image Option OG9047 Access port diameter 60 mm
Centered on the left side. Allows the passage of cables or sensors.
OG9049 Image Option OG9049 Temperature profiler and recorder
Creates up to 100 programs with 25 steps each. Recording of measured temperatures. Large graphical display. Real-time monitoring of temperatures. 3 extra channels. With USB and RJ45 plugs.
OG9058 Image Option OG9058 Key lock door
OG9073 Image Option OG9073 Ethernet RJ45 communication module
Interface connected to the oven controller(C3030, C6000 or C6060). The user can control the controller with a web application included in the interface. It can also send data to a cloud.
OG9074 Image Option OG9074 Tower 3 lights and buzzer
Green: Cycle in progress Yellow: Cycle finished Red: Alarm Buzzer: Alarm / Cycle finished
All the accessories for the range XUE
Reference Image Description
AG9001 Image Accessoire AG9001 Shelf with guide bars
Made of chromed steel. Max distributed loading of 30 kg. With 2 anti-tilting guide bars.
AG9002 Image Accessoire AG9002 Reinforced shelf 60 kg with guide bars
Made of chromed steel. Max distributed loading of 60 kg. With 2 anti-tilting guide bars.
AG9003 Image Accessoire AG9003 Recovery tray
Made of stainless steel. Easy to clean. Their height of 20 mm collects liquids or other substances during your process.
AG9004 Image Accessoire AG9004 Stacking kit
Only for XU032 to XU112. To stack 2 ovens same size.
AG9005 Image Accessoire AG9005 Subframe with feet
Elevates the oven for a more comfortable loading. Adjustable feet in height.
AG9006 Image Accessoire AG9006 Subframe with castors
Elevates the oven for a more comfortable loading. 4 castors, two with brakes.
AG9013 Image Accessoire AG9013 Data logger with 2 channels (software included)
Saves the temperatures measured by 2 mobile sensors. Record temperatures measured by 2 mobile sensors. Box with magnetic fixing<br> Dimensions : 93.2 x 65.2 x 30.5 mm Weight: 115 g<br> Display : LCD screen 2 lines | ABS IP54<br> Communication PC : 1 micro-USB Power supply by battery AA lithium 3.6V<br> Tc entries : female connector micro-USB, thermocouples (K, J, T, N, S)<br> Recording from every 1s to 24h Autonomy: 4 years (for 1 measure every 15 monutes) Software and cable included
AG9014 Image Accessoire AG9014 Portable paperless recorder with graphical screen 4 channels
Color graphical display for real monitoring of temperature changes. With USB and RJ45 plugs, and 4 connectors for mobile sensors.
AG9015 Image Accessoire AG9015 Portable paperless graphic recorder with 6 channels
Full color screen display. Real monitoring of temperature changes. With USB and RJ45 plugs, and 6 connectors for mobile sensors.
AG9016 Image Accessoire AG9016 Thermocouple probe
Length 3 m, with plug
AG9041 Image Accessoire AG9041 Whel frame mount
