Range XFP
Download the documentation
Some key points to choose a 'good vacuum oven': the quality of its construction which validates the required performance the optimized design which gives exceptional performance solid construction which guarantees total safety radiant heating which allows meticulous cleaning the thickness of the window which is an element of security the connection to the vacuum pump which must be easy and adapt to all models simple vacuum regulation aluminum tray which distributes the heat evenly temperature controls which are easily carried out with precision and reliability perfect insulation the tightness of the door mastery of vacuum temperature control
XFP vacuum ovens are suitable for sensitive product drying applications*, outgassing, thermal treatments of oxidizable materials, quick drying of powders and granulates... in laboratories as well as industries : pharmaceutical, cosmetics, plastic, electronical or chemical. * For any drying application, please contact us to explain exactly your need to +33 164213060. We will help you to find the products adapted to your needs. Max temperature :
200°C**
** We can make vacuum ovens above 200°C, consult us ! Vacuum range (absolute pressure) :
Down to 1 mbar (10-2 mbar in option)
Option air cooling Some models can be equiped with a cooling system for the tank using ambiant air. Shorten efficiently your production cycles time. Consult us 6 volumes : 20, 51, 110, 220, 316 et 512 litres.
Robust build for lasting performances.
The outside of the vacuum ovens is made of steel covered with white and blue epoxy paint. The inner casing is made of corrosion resistant stainless steel. THICKNESS ISOLATION The outer casing is separated from the inner casing to prevent any loss of heat. Non-asbestos insulation allows low surface temperatures, reduced power consumption and rapid temperature rise. DOOR WITH VIEWING WINDOW Thick safety glass window which avoid overpressure. SEALING The seal on the door is guaranteed by a long-life silicone gasket. It can be replaced with a viton seal (option). Locking by adjustable clamps EASY CLEANING Rounded corners and removable racks allow easy cleaning.
Reliable temperature on your products.
Heating is ensured by heating elements located on outer faces of the inner casing for best homogeneity. XFP vacuum ovens have 2 temperature sensors : 1 probe fastened on the side, 1 other is mobile to be integrated on your product. The controller automatically adjusts the temperature of the walls for a perfect precision on your products.
Easy temperature measurements !
An DN16 KF entry port allows to insert up to 4 temperature probes.
A reliable connection of your vacuum pump.
The electrical connection of the vacuum pump is made directly to the back of the oven. A KF-type connector allows air to be pumped and a nipple ensures air release.

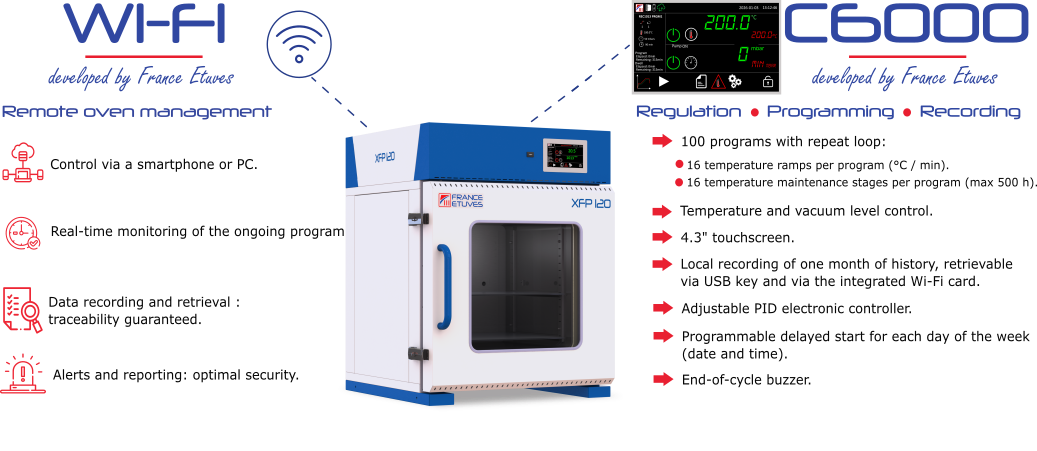

One device, complete management !
The ovens are controlled by a 7' color touch screen controller. Very intuitive and easy to use. TEMPERATURE CONTROL Automatic control and real-time monitoring of temperature measured by a thermocouple J probe. VACUUM CONTROL High precision PID control. Several modes of vacuum regulation are possible : maximum vacuum level of the pump; maintaining a constant pressure. Automatic control of solenoid valves for changing the vacuum level. Real-time monitoring of vaccum level. CYCLE PROFILER A profiler of 4 programs of 16 steps allows the creation of cycles of pressure and temperature combined HISTORY OF TREATMENTS A data logger records continuously the data of the oven (temperature and pressure levels). The data is available in csv files. Note : The oven can be controlled via a PC with an RJ45 cable.
Protections for your oven and your products.
Automatic heating and pumping turn off when the door is opened . XFP ovens are equipped with an electronic thermostat with 2 modes (TWW or TWB) according to DIN 12 880. In TWW mode, the overheating protection thermostat behaves like an electronic thermostat with automatic reset (protection class 3.1). It measures the temperature in the volume, and control the temperature in the event of failure of the temperature controller. It stops heating until the temperature has dropped below the value of its setting. In TWB mode, the overheating protection thermostat behaves like an electronic thermostat with manual reset (protection class 2.0). When the measured temperature exceeds the set value, the heating is switched off. It is only available again if the thermostat is manually reset. Setpoint Deviation Temperature (SDT) The SDT system is a mechanism for monitoring the set temperature within a set tolerance zone. This is a temperature tracking alarm. With visual and audible alarm.
Easy loading and unloading
1 aluminium tray provided. Multiple load levels. Maximum load distributed on a tray up to 30 kg. Easy removable racks for easy cleaning.
| Model | XFP020 |
|---|---|
| Chamber volume: | 20 litres |
| Performances : | |
|---|---|
| Standard maximum temperature : | 200 °C |
| Optional maximum temperature : | 0 °C |
| Dimensions : | |
|---|---|
| Chamber volume: | 20 litres |
| Interior Dimensions (L x P x H) : | 250 x 320 x 250 mm |
| Exterior Dimensions (L x P x H) : | 480 x 695 x 738 mm |
| Partials product models shleves | |
|---|---|
| Shelves quantity : | 1 delivered / 4 maximum |
| Shelves dimensions : | 224 x 280 mm |
| Max Load per Shelf / Total : | 30 / 60 kg |
| Power & Divers : | |
|---|---|
| Electrical Supply : | 230V ~1P 50Hz 16A |
| Standard power 200 °C : | 800 Watts |
| Number of door(s) : | 1 |
| Weight : | 70 kg |
| Model | XFP050 |
|---|---|
| Chamber volume: | 51 litres |
| Performances : | |
|---|---|
| Standard maximum temperature : | 200 °C |
| Optional maximum temperature : | 0 °C |
| Dimensions : | |
|---|---|
| Chamber volume: | 51 litres |
| Interior Dimensions (L x P x H) : | 320 x 500 x 320 mm |
| Exterior Dimensions (L x P x H) : | 550 x 876 x 808 mm |
| Partials product models shleves | |
|---|---|
| Shelves quantity : | 1 delivered / 5 maximum |
| Shelves dimensions : | 294 x 460 mm |
| Max Load per Shelf / Total : | 30 / 60 kg |
| Power & Divers : | |
|---|---|
| Electrical Supply : | 230V ~1P 50Hz 16A |
| Standard power 200 °C : | 1200 Watts |
| Number of door(s) : | 1 |
| Weight : | 90 kg |
| Model | XFP120 |
|---|---|
| Chamber volume: | 110 litres |
| Performances : | |
|---|---|
| Standard maximum temperature : | 200 °C |
| Optional maximum temperature : | 0 °C |
| Dimensions : | |
|---|---|
| Chamber volume: | 110 litres |
| Interior Dimensions (L x P x H) : | 470 x 500 x 470 mm |
| Exterior Dimensions (L x P x H) : | 812 x 877 x 1018 mm |
| Partials product models shleves | |
|---|---|
| Shelves quantity : | 1 delivered / 8 maximum |
| Shelves dimensions : | 444 x 460 mm |
| Max Load per Shelf / Total : | 30 / 90 kg |
| Power & Divers : | |
|---|---|
| Electrical Supply : | 230V ~1P 50Hz 16A |
| Standard power 200 °C : | 2400 Watts |
| Number of door(s) : | 1 |
| Weight : | 180 kg |
| Model | XFP240 |
|---|---|
| Chamber volume: | 220 litres |
| Performances : | |
|---|---|
| Standard maximum temperature : | 200 °C |
| Optional maximum temperature : | 0 °C |
| Dimensions : | |
|---|---|
| Chamber volume: | 220 litres |
| Interior Dimensions (L x P x H) : | 470 x 1000 x 470 mm |
| Exterior Dimensions (L x P x H) : | 812 x 1384 x 1018 mm |
| Partials product models shleves | |
|---|---|
| Shelves quantity : | 1 delivered / 8 maximum |
| Shelves dimensions : | 444 x 960 mm |
| Max Load per Shelf / Total : | 30 / 90 kg |
| Power & Divers : | |
|---|---|
| Electrical Supply : | 230V ~1P 50Hz 20A |
| Standard power 200 °C : | 3600 Watts |
| Number of door(s) : | 1 |
| Weight : | 250 kg |
| Model | XFP320 |
|---|---|
| Chamber volume: | 316 litres |
| Performances : | |
|---|---|
| Standard maximum temperature : | 200 °C |
| Optional maximum temperature : | 0 °C |
| Dimensions : | |
|---|---|
| Chamber volume: | 316 litres |
| Interior Dimensions (L x P x H) : | 650 x 750 x 650 mm |
| Exterior Dimensions (L x P x H) : | 992 x 1161 x 1248 mm |
| Partials product models shleves | |
|---|---|
| Shelves quantity : | 1 delivered / 11 maximum |
| Shelves dimensions : | 624 x 710 mm |
| Max Load per Shelf / Total : | 30 / 120 kg |
| Power & Divers : | |
|---|---|
| Electrical Supply : | 400V ~3P + N 50Hz 16A |
| Standard power 200 °C : | 6000 Watts |
| Number of door(s) : | 1 |
| Weight : | 340 kg |
| Model | XFP512 |
|---|---|
| Chamber volume: | 512 litres |
| Performances : | |
|---|---|
| Standard maximum temperature : | 200 °C |
| Optional maximum temperature : | 0 °C |
| Dimensions : | |
|---|---|
| Chamber volume: | 512 litres |
| Interior Dimensions (L x P x H) : | 800 x 800 x 800 mm |
| Exterior Dimensions (L x P x H) : | 1142 x 1211 x 1398 mm |
| Partials product models shleves | |
|---|---|
| Shelves quantity : | 1 delivered / 15 maximum |
| Shelves dimensions : | 772 x 760 mm |
| Max Load per Shelf / Total : | 30 / 200 kg |
| Power & Divers : | |
|---|---|
| Electrical Supply : | 400V ~3P + N 50Hz 20A |
| Standard power 200 °C : | 9000 Watts |
| Number of door(s) : | 1 |
| Weight : | 450 kg |
| Range XFP | XFP020 | XFP050 | XFP120 | XFP240 | XFP320 | XFP512 | |
|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
| Performances | |||||||
|---|---|---|---|---|---|---|---|
| Temperature range : | Ambient temperature + 20 °C à 200 °C | ||||||
| Standard maximum temperature : | 200 °C | ||||||
| Chamber dimensions | |||||||
|---|---|---|---|---|---|---|---|
| Chamber volume: | dm3 | 20 | 51 | 110 | 220 | 316 | 512 |
| Width : | mm | 250 | 320 | 470 | 470 | 650 | 800 |
| Depth : | mm | 320 | 500 | 500 | 1000 | 750 | 800 |
| Height : | mm | 250 | 320 | 470 | 470 | 650 | 800 |
| Exterior Dimensions | |||||||
|---|---|---|---|---|---|---|---|
| Exterior Chamber Volume : | m3 | 0.25 | 0.39 | 0.72 | 1.14 | 1.44 | 1.93 |
| Width : | mm | 480 | 550 | 812 | 812 | 992 | 1142 |
| Depth : | mm | 695 | 876 | 877 | 1384 | 1161 | 1211 |
| Height : | mm | 738 | 808 | 1018 | 1018 | 1248 | 1398 |
| Shelves: | |||||||
|---|---|---|---|---|---|---|---|
| Delivered / Maximum : | 1 / 4 | 1 / 5 | 1 / 8 | 1 / 8 | 1 / 11 | 1 / 15 | |
| Dimensions L / P : | mm | 224 x 280 | 294 x 460 | 444 x 460 | 444 x 960 | 624 x 710 | 772 x 760 |
| Maximum weight / Total : | kg | 30 / 60 | 30 / 60 | 30 / 90 | 30 / 90 | 30 / 120 | 30 / 200 |
| Other informations | |||||||
|---|---|---|---|---|---|---|---|
| Number of door(s) : | 1 | 1 | 1 | 1 | 1 | 1 | |
| Window L / l (option) | mm | - | - | - | 450x450 | - | - |
| Weight : | kg | 70 | 90 | 180 | 250 | 340 | 450 |
| Electrical data | |||||||
|---|---|---|---|---|---|---|---|
| Standard power 200 °C : | Watts | 800 | 1200 | 2400 | 3600 | 6000 | 9000 |
| Electrical Supply : | volts | 230V ~1P 50Hz 16A | 230V ~1P 50Hz 16A | 230V ~1P 50Hz 16A | 230V ~1P 50Hz 20A | 400V ~3P + N 50Hz 16A | 400V ~3P + N 50Hz 20A |
| Reference | Image | Description |
|---|---|---|
| OG9065 |  |
Door gasket made of Viton Door silicon gasket replaced by viton gasket (limited to 200°C) |
| OG9070 |  |
Minimum vacuum level within 10-2 mbar Addition of a Pirani gauge to measure low pressure |
| OG9073 |  |
Ethernet RJ45 communication module Interface connected to the oven controller(C3030, C6000 or C6060). The user can control the controller with a web application included in the interface. It can also send data to a cloud. |
| OG9075 |  |
Factory calibration certificate 1 point 1 temperature Measurement in the center of the tray at 105°C or 150°C. Oven at maximum vacuum. |
| OG9076 |  |
Homogeneity control certificate at 1 temperature. Control of temperature homogeneity on the surface of the tray at 105°C or 150°C. Use of 4 to 6 probes depending upon the size of the oven. The probes are fixed on the plate. On request, possibility of measuring homogeneity on several trays (contact us). Oven at maximum vacuum. |
| Reference | Image | Description |
|---|---|---|
| AG9013 |  |
Data logger with 2 channels (software included) Saves the temperatures measured by 2 mobile sensors. Record temperatures measured by 2 mobile sensors. Box with magnetic fixing<br> Dimensions : 93.2 x 65.2 x 30.5 mm Weight: 115 g<br> Display : LCD screen 2 lines | ABS IP54<br> Communication PC : 1 micro-USB Power supply by battery AA lithium 3.6V<br> Tc entries : female connector micro-USB, thermocouples (K, J, T, N, S)<br> Recording from every 1s to 24h Autonomy: 4 years (for 1 measure every 15 monutes) Software and cable included |
| AG9018 |  |
Vacuum kit up to 1 mbar (oil bath pump) Oil sealed vacuum pump with 1 m flexible hose and exhaust filter |
| AG9025 |  |
Subframe with castors Elevates the oven for a better loading comfort. Safety glass at the front. Clever storage of the vacuum pump inside. 4 castors, two with brakes. |
| AG9026 |  |
Subframe with feet for XFP Elevates the oven for a better loading comfort. Height adjustable feet. With pump support on the back of the subframe. |
| AG9028 |  |
Thermocouple J probe Stainless steel. Length of 2m. With plug and shutter to be placed in passage DN16. |
| AG9029 |  |
Subframe with feet Elevates the oven for a better loading comfort. Safety glass at the front. Clever storage of the vacuum pump inside. Height adjustable feet. |
| AG9030 |  |
Subframe with castors for XFP Elevates the oven for a better loading comfort. 4 castors, two with brakes. With pump support on the back of the subframe. |
| AG9031 |  |
Vacuum kit up to 10-2 mbar Oil sealed vacuum pump with 1 m flexible hose and oil filter |
| AG9032 |  |
Aluminium tray with guide bars Max distributed loading 30 kg. With 2 anti-tilting guide bars. |
| AG9033 |  |
Portable paperless recorder with graphical screen 4 channels Temperature and vacuum. Color graphical display for real monitoring. With USB and RJ45 plugs, and 4 plugs for mobile sensors. |
| AG9037 |  |
2 probes DN16KF adaptor Airtight adaptor supplied with centering ring and clamp. To be placed on a DN16 KF flange to introduce up to 2 probes inside an oven (probes not included). |
| AG9038 |  |
4 probes DN16KF adaptor Airtight adaptor supplied with centering ring and clamp. To be placed on a DN16 KF flange to introduce up to 4 probes inside an oven (probes not included). |
